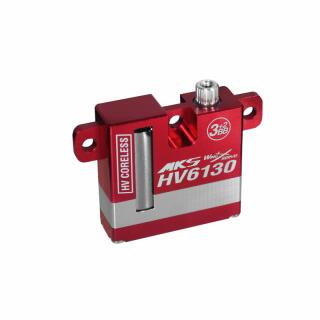

- gebraucht aus MKS Werksreparatur - Motor und Getriebe neu. Gebrauchsspuren sind an den Montagelaschen vorhanden. Am Gehäuse sind minimale Kleberrückstände. Das original Zubehör liegt dem Servo im Neuzustand bei.
Torque: 6.0 kg-cm (6.0V) / 7.6 kg-cm (7.4V) / 8.1 kg-cm (8.2V)
Speed: 0.14 s (6.0V) / 0.11 s (7.4V) / 0.10 s (8.2V)
Weight: 22.5 g
Dimension: 30 x 10 x 29.8 mm
Working Voltage: 3.5~8.4 V DC Volt (2S Lipo un-regulated)
Working frequency: 1520µs / 333Hz
Dead Band: 0.001 ms (Default)
Bearing: 3* ball bearing + 2*Jewel bearing
Motor: Coreless Motor
Gear: Metal Alloy Gear
Current Draw: 1.2A@ 6.0V / 1.4A@ 7.4V / 1.6A@ 8.2V
When the servo motor life is ended,
Built-In Safe System avoids the servo short circuit and let plane land safely.
