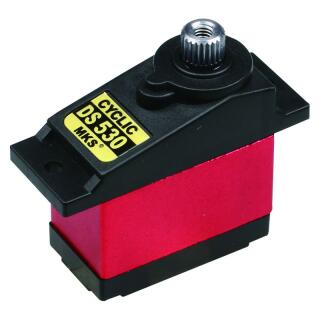

DS-530 Specifications:
Dead band: 0.002ms (Default)
Control System: +Pulse Width Control
Working frequency: 1520μs / 80hz Digital mode/Analogy mode
(RX) Required Pulse: 3.0 ~5.0 Volt Peak to Peak Square Wave
Operating Voltage: 4.8 ~5.0 V DC Volts
Operating Temperature Range: -10 to + 60 Degree C
Operating Speed (4.8V): 0.098 sec/60° degrees at no load
Operating Speed (5.0V): 0.094 sec/60° degrees at no load
Stall Torque (4.8V): 39.99 oz in (2.88kg.cm)
Stall Torque (5.0V): 41.66 oz in (3.00kg.cm)
360° Modifiable: YES
Motor Type: DC Motor
Potentiometer Drive: Indirect Drive
Driver Type: FET
Bearing Type: Dual Ball Bearings
Gear Type: Four Aluminum-titanium alloy Gears + One Plastic gear
Programmable: YES
Connector Wire Length: 15.0 cm (5.9")
Dimensions: 23x12x25mm (0.90x0.47x1.02")
Weight: 13.0g (0.46 oz)
