From a customer return due to cancellation. Original packaging is missing. Minimal signs of wear or assembly may be present. The original accessories are included with the servo.

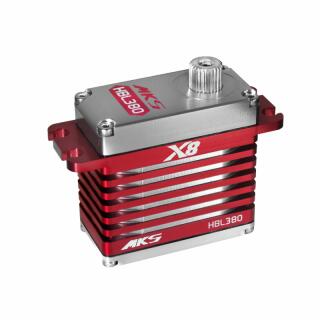

Ultra Torque Servo
- Perfect Servo for large-scale airplane, jet and 1/8, 1/5 scale buggy.
- Ideal for CCPM on 700~800 class helicopter.
- Ultra torque, incredible efficiency, and low power consumption.
- CNC Machined Metal Case Design for Exceptional Cooling.
- HD 4096 Resolution, 0.008ms Dead Band.
- Superior Holding Torque, Japanese Brushless Motor.
- Output performance to the top level – smoother, faster, and more efficient.
- Special design for high voltage 2s LiPo operation.
- Extremely strong Chrome-Titanium alloy gear, providing high level of durability that will survive heavy use.
Technical specifications
Torque: 31 kg.cm (6V) / 39 kg.cm (7.4V) / 41 kg.cm (8.2V)
Speed: 0.114 s (6V) / 0.092 s (7.4V) / 0.082 s (8.2V)
Weight: 73 g
Dimension: 40 x 20 x 38.5 mm
Working Voltage: 3.5 - 8.4 V DC Volts (2S Lipo un-regulated)
Working frequency: 1520µs / 333Hz
Dead Band: 0.0008 ms (Default)
Bearing: 12x8 mm Double bearings
Motor: Japan High Quality Brushless Motor
Gear: Chrome-Titanium alloy gear
Electric current draw: 6.2A max. (8.2V) / 5.8A max. (7.4V) / 4.7A max. (6.0V)
Wire Length: 24 cm
