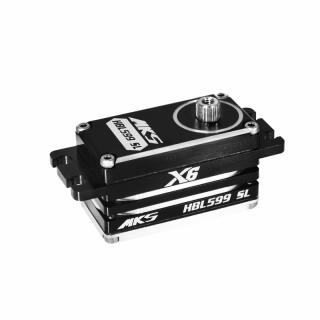

Ideal for 1/10 surface applications.
Combining full metal gears, case and amazing speed.
The low-profile dimensions makes it perfect for any vehicle that is cramped for space.
CNC Machined Metal Case Design for Exceptional Cooling.
HD 4096 Resolution, 0.008ms Dead Band.
Superior Holding Torque, Japanese Brushless Motor.
High speed, incredible efficiency, and low power consumption than comparable servos.
Specifications:
- Torque: 16 kg/cm (4.8V) - 18 kg/cm (6.0V) - 23 kg/cm (7.4V)
- Speed: 0.14s (4.8V) - 0.11s (6.0V) - 0.09s (7.4V)
- Weight: 53.5 g
- Dimension: 40.5 x 20.5 x 23.1 mm
- Working Voltage: 3.5 - 8.4 V DC Volts (2S Lipo un-regulated)
- Working frequency: 1520µs / 333Hz
- Dead Band: 0.0008 ms
- Bearing: 2BB
- Motor: Japan High Quality Brushless Motor
- Gear: Chrome-Titanium alloy gear
