From a customer return due to cancellation. Original packaging is missing. Minimal signs of wear or assembly may be present. The original accessories are included with the servo.

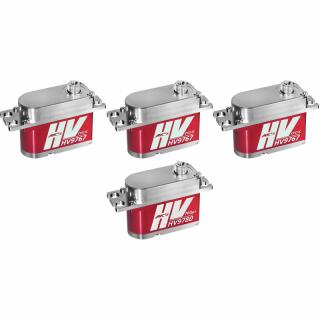

HV9767 Swash plate servo:
Torque: 6.8 kg-cm (6.0V) / 8.5 kg-cm (7.4V) / 9.4 kg-cm (8.2V)
Speed: 0.090 s (6.0V) / 0.078 s (7.4V) / 0.070 s (8.2V)
Weight: 38.55 g

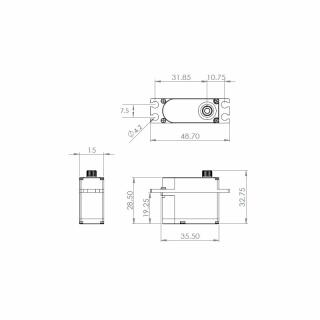

Dimension: 35.5 x 15 x 28.5 mm
Working Voltage: 5.5 - 8.4 V DC Volts (2S Lipo un-regulated)
Working frequency: 1520µs / 333hz
Dead Band: 0.001 ms (Default)
Bearing: 2BB
Motor: coreless Motor
Gear: Chrome-Titanium alloy gear
Electric current draw: 2.6A max.(8.2V) ¦ 2.4A max.(7.4V) ¦ 2.0A max (6.0V)
Wire Length: 29.5 cm
HV9780 Tail Servo:
Torque: 3.3 kg-cm (6.0V) / 4.0 kg-cm (7.4V) / 4.5 kg-cm (8.2V)
Speed: 0.055 s (6.0V) / 0.045 s (7.4V) / 0.040 s (8.2V)
Weight: 38.01 g
Dimension: 35.5 x 15 x 28.5 mm
Working Voltage: 5.5 - 8.4 V DC Volts (2S Lipo un-regulated)
Working frequency: 760µs / 560hz
Dead Band: 0.001 ms (Default)
Bearing: 2BB
Motor: Coreless Motor
Gear: Chrome-Titanium alloy gear
Electric current draw: 2.6A max.(8.2V) ¦ 2.4A max.(7.4V) ¦ 2.0A max (6.0V)
Wire Length: 29.5 cm
