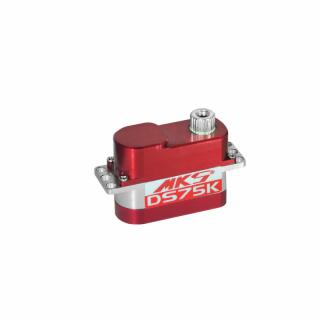

DS75K Digital Servo Type A

Item number: S0015008

EAN: 4710150350455

Category: Wing Servos


Contact your dealer
MSRP incl. 19% VAT: 60,99 €
Search dealer
Not available now!


For DLG, HLG / F3K Competitions

Torque: 1.6 kg-cm (3.7V) / 2 kg-cm (4.8V)/ 2.4 kg-cm (6.0V)
Speed: 0.22 s (3.7V) / 0.16 s (4.8V)/ 0.13 s (6.0V)
Weight: 7.4 g (+0.1g)
Dimension: 23 x 9 x 16.7 mm
Working Voltage: 3.7- 6.0 V DC Volts
Working frequency: 1520s / 333hz
Dead Band: 0.001 ms (Default)
Bearing: 2BB
Motor: Coreless Motor
Gear: 7075 Chrome-Titanium alloy gear
Case: 6061 Aluminum CNC Casing
Max. current: 680 mA max. (6.0V) / 570 mA max. (4.8V) / 400 mA max. (3.7V)


Servothickness: 9mm
Servovoltage: max 6V
Servotype: Wing servo
Unsere WEEE-Reg.-Nr: DE 36345768
Contact
Question on item

code

Flyer DS75K

Specs. to the DS75K and compared with the DS65K as a flyer.

Flyer DS75K
