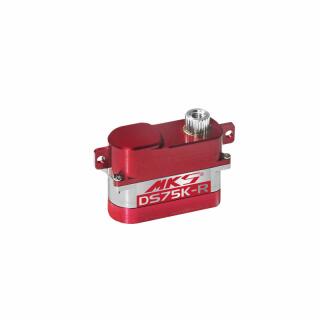

DS75K-R für liegende Servo Montage in DLG/HLG/F3K Modellen
Technische Daten:
Totzone: 0.001 ms (Grundeinstellung)
Arbeitsfrequenz: 1520µs / 333hz
Stellgeschwindigkeit (3.7V): 0.22 sec/60° ohne Last
Stellgeschwindigkeit (4.8V): 0.16 sec/60° ohne Last
Stellgeschwindigkeit (6.0V): 0.13 sec./60° ohne Last
Stellmoment (3.7V): 1.6 kg.cm
Stellmoment (4.8V): 2.0 kg.cm
Stellmoment (6.0V): 2.4 kg.cm
Motortyp: Coreless Motor (eisenlos)
Lagerungstyp: 2-fach Kugelgelagert
Getriebetyp: metall- und 7075 aluminium-magnesiumlegierte Zahnräder
Gehäuse: CNC gefertigt, komplett aus 6061 Aluminium
Vielzahn: 24 T / f5
Blockierstrom: 680 mA max. (6.0V) / 570 mA max. (4.8V) / 400 mA max. (3.7V)
Dimensionen:
Abmessungen: 23 x 9 x 16.7 mm
Gewicht: 7.5g (+0,1g)
